VHA-112-SA Vertical Horizontal Flyable Active Subwoofer 1x12" - 1200W

VHA-112-SA Vertical Horizontal Flyable Active Subwoofer 1x12" - 1200 Watt RMS

The VHA112SA flyable and ground stackable bass-extension module seamlessly matches the VHA406A in both size and shape yet houses a single 12" long-excursion B & C woofer. The bass-reflex design incorporates a 1200 W Class-D amplifier module and includes onboard DSP with filtering, equalization, and limiting.

Bass-reflex amplified subwoofer
320 High-excursion 320mm (12") Woofer B&C
Frequency response from 45Hz to 120Hz
1200Wrms class D amplifier with switching mode power supply
DSP processor with 8 presets, delay

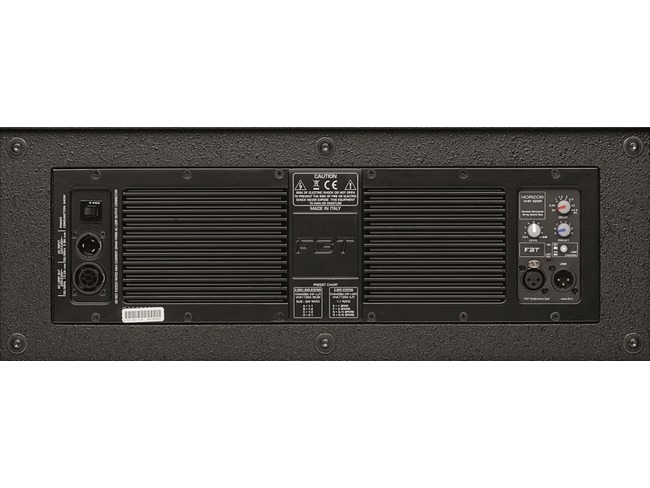

Control panel with XLR input and link, volume, presets, delay, ground-lift
Neutrik PowerCON TRUE1 IN and LINK power connectors
Cabinet in 12mm (0.5") birch plywood with anti-scratch varnish. Handles with rubber inserts and rubber-coated sides to protect the cabinet from bumps and scratches.

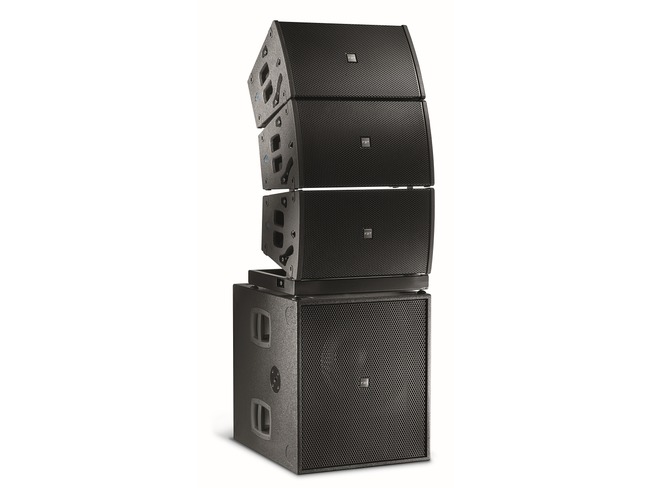

Ideal for reinforcing and extending the low range of the VHA406A line array in the 45Hz - 120Hz range

Features

• Configuration: Bass Reflex • Frequency response: 45Hz - 120Hz -6dB • Low frequency woofer: 12" (3" VC) • Maximum SPL cont/peak: 131.5/135 half-space dB • Dispersion: Omnidirectional • Input impedance: 22kOhm • Crossover frequency: Preset Dependent • Input connector: XLR with link out

• Net Dimension (WxHxD): 612 x 360 x 397 mm • Net Weight: 25kg • Transport Dimension (WxHxD): 695 x 440 x 475mm • Transport Weight: 28kg • AC Power requirements: 640VA • Built-in amplifier LF/HF: 1200w • Built-in amplifier peak LF/HF: 2400w • Power cord: 5m
