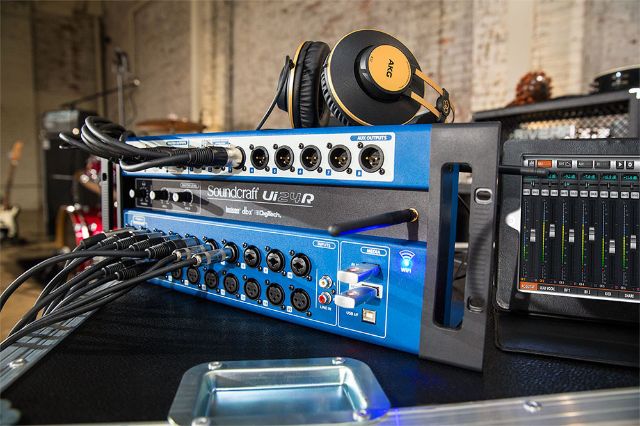

SOUNDCRAFT Ui-24R

The Soundcraft Ui24R is a complete, rack-mountable, digital mixing and multi-track recording system that delivers flexible I/O, pristine sound quality, intuitive wireless control, and roadworthy reliability—all in a streamlined design. The system can double as a stage box and can be controlled by up to 10 devices via Ethernet or built-in dual-band Wi-Fi, making it possible to control mixing and multi-track recording wirelessly from anywhere in the venue. With renowned HARMAN signal processing, Studer-designed preamps, and much more—from the studio to the stage, Soundcraft Ui24R is the ultimate system for artists, venues, and engineers who need to save space and deliver superior sound.

Features

• Renowned Soundcraft quality and performance • Built-in dual-band Wi-Fi eliminates the need for a router to provide a reliable connection to up to 10 mobile devices in mission-critical situations • Control Ui24R from iOS, Android, Windows, Mac OS, and Linux browsers without installing additional apps • Record and mix with the warmth of 20 professional-quality Studer-designed preamps • dbx compression and iconic Lexicon reverb and delay processing • 2 channels of DigiTech guitar amp modeling • Dual-path, redundant multi-track recording of all 24 inputs to a USB drive and connected Mac/PC

• 24 simultaneous inputs (10 combo ¼” TRS/XLR, 10 XLR, 2 line level, 2 digital) • 4-band parametric EQ, high-pass filter, compressor, de-esser, and noise gate on input channels • 31-band graphic EQ, noise gate, compressor, and dbx® AFS2 Automatic Feedback Suppression on all outputs • Real-time frequency analyzer (RTA) on inputs and outputs • Compatible with Mac/PC DAWs and other music software • Compatible with Harman Connected PA application and system for easier setup and control • 4U rackmount design
