| • Carrier Frequency Range 470~960 MHz

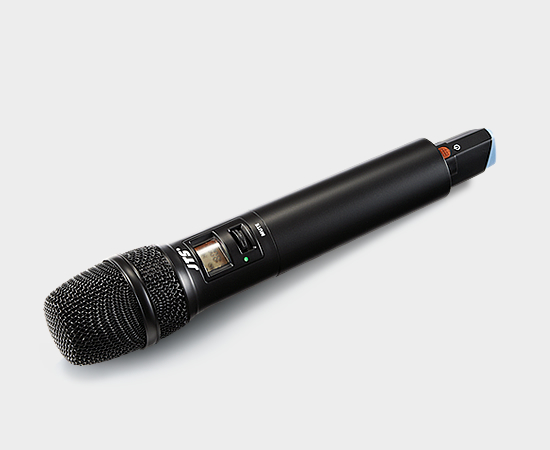

• Removable antennas (BNC connection) • Auto-scan function • Besides selectable group and channel, its frequency can be fine adjusted by an interval of 0.025 MHz for multi-system applications. • Pilot tone squelch and noise mute • Bandwidth: 36 MHz • 6 groups, each with up to 22 compatible preset channels • 1,441 selectable individual frequencies • REMOSET ULTRASONIC technology for receiver/transmitter synchronization • Backlit display with status indications, e.g. group/channel, frequency, battery, antenna A/B, RF receiving level, AF audio level • XLR output (balanced) and 6.3 mm jack output (unbalanced) • RU850LTH UHF handheld condenser transmitter. | • Carrier Frequency Range 470~960MHz
• Frequency Setting REMOSET U(Receive) • RF Output Low / High • Stability <±10KHz@Fc • Frequency Deviation ±48KHz • Spurious Emissions <-50dBc • Function Mute, Auto Power Off, Sensitivity Adjust, Low Battery • Display LCD+LED • Controls Power, Mute, Group, Channel, • Frequency, Gain Adjust, Auto Power Off, Key • Lock • Battery UM3, AA x2 |
