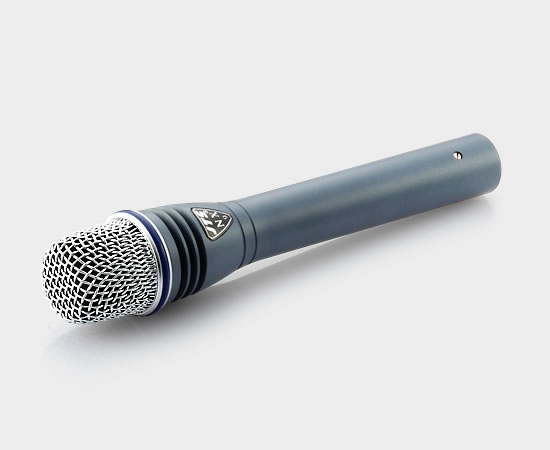

NX-9 Overhead Condenser Microphone (Cardioid)

NX-9 Overhead Condenser Microphone (Cardioid)

For various applications: sound pickup of hi-hats/cymbals/percussion instruments, microphone applications with acoustic instruments, e.g. guitars, violins, pianos or wind instruments
Well-balanced and natural sound
Operation via +48 V phantom power or via 1.5 V battery AA size (not supplied)
Supplied with a microphone holder and padded bag

Features

• Type Electret Condenser • Frequency Response 60~18,000 Hz • Polar Pattern Cardioid, rotationally symmetrical about microphone axis, uniform with frequency • Sensitivity(at 1,000Hz) -70dB*(0.32mV)*0dB=1V/μbar • Output Impedance 400Ω • Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

• Connector Three-pin professional audio connector • (male XLR type) • Case Metallic enamel-painted die-cast metal body with hardened, matte-finished steel grille • Net Weight 230 grams (8.1 oz) • Touch Noise. Super low • Power Supply 9-52V phantom power or battery 1.5V AA
