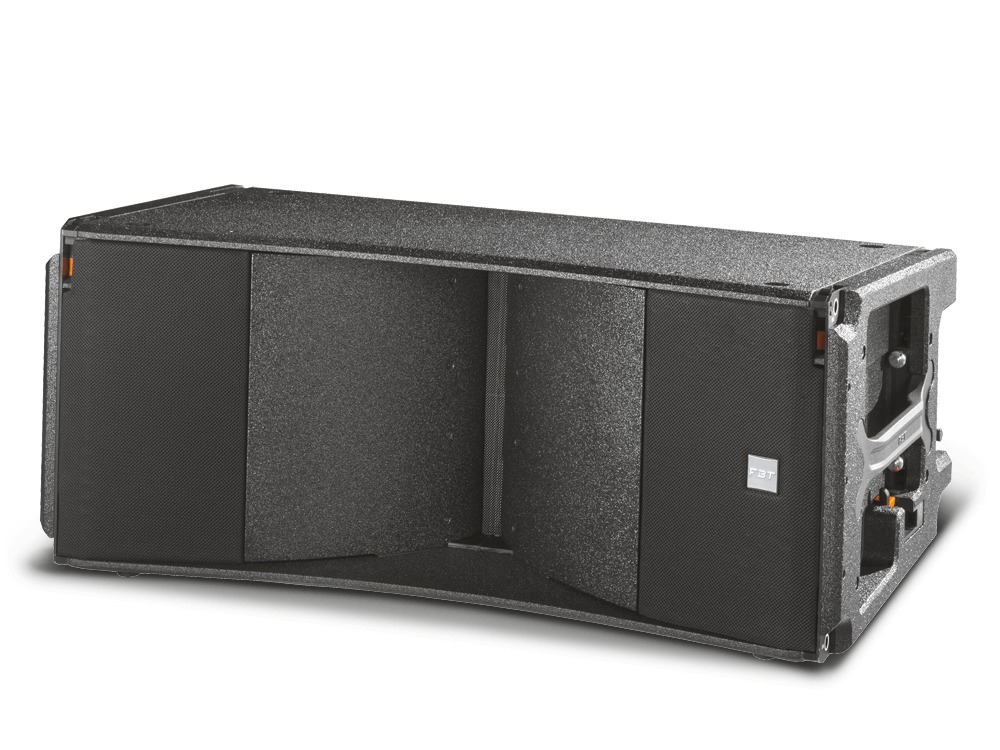

MYRA214L Passive Bi-amped 3way Line Array

Roll over or click to zoom in

See more from FBT

Model: MYRA214L

MYRA 214L Passive Bi-amped 3way Line Array - 2 x 14" + 2 x 1.4" - 1600W rms + 640W rms

MYRA system is a complete solution for mid to large-size touring applications and high-end fixed installations. MYRA 214L is a full-range variable curvature 3-WAY line array module.

Designed without compromise, the MYRA establishes a new reference for SPL to size ratio, directivity control, coherence, and ease of use. It’s the result of an extensive three-year R&D program started from scratch to address the challenges of rental companies, FOH, and tour sound engineers.

The heart of the 214L line array element features two uniquely designed neodymium coaxial compression drivers that combine 4-inch VC mid-frequency and 2.5-inch VC high-frequency into a 1.4" throat, developed in cooperation with B&C, and covering the 400Hz to 20kHz range.

Features

• RECOMMENDED AMPLIFIER: 1600 LF - 600 MF - HF W RMS
• LONG-TERM POWER: 800 LF - 300 MF - HF W
• SHORT-TERM POWER: 3200 LF - 1200 MF - HF W
• NOMINAL IMPEDANCE: 4 LF - 16 MF - HF ohm
• FREQUENCY RESPONSE: 40Hz - 20Khz -6dB
• LOW-FREQUENCY WOOFER: 2 x 14" (neo) / 3" voice coil

• HIGH-FREQUENCY DRIVER: 1.4" neo coax / 4" coil MF / 2.5" coil HF
• MAXIMUM SPL CONT/PEAK:147 dB DISPERSION:
• 90 x depends on curvature and number of elements HxV
• INPUT CONNECTOR: Neutrik NL T4MP
• NET DIMENSION (WXHXD): 930 x 400 x 530 mm / 36.61 x 15.70 x 20.86 inch
• NET WEIGHT: 61.5 kg / 135.58 lb
