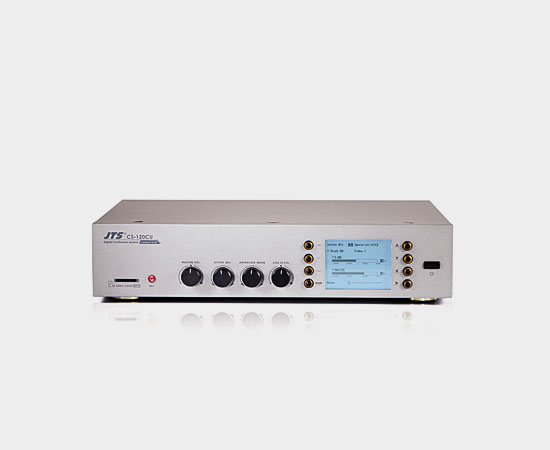

CS-120CU Central Conference Power and Control Unit

CS-120CU works as a main unit of the whole system. It provides all inputs and outputs needed to manage a complex audio system. A single CS-120CU can be connected with 90 sets of CS-120CH and CS-120DU. With the additional power unit, CS-120EMU up to 256 sets can be connected.

This stand-alone system provides 4 types of conferencing modes, Open, Over-ride, Voice, and Apply. It meets most conference requirements. A voting function is also provided. A large LCD screen provides detailed information. The soft-key design provides intuitive operation Maximum 4 video cameras can be connected to perform video tracking.

Features

• Supply voltage AC110Vor AC220V (default settings) • Number of connectable conference units ≤254 • Frequency response 40-16000Hz • Signal-to-noise ratio >80dBA • Dynamic range >85dB • Audio crosstalk >70dB • Total harmonic distortion <0.05% • Original input: 6.3 mm balanced • Signal strength: 0.775 V

• Audio inputs Recording input: RCA type*1 • Original output: RCA*2 balanced, XLR*1 balanced • Audio outputs Recording output: RCA type*1 • SD card slot Support 32GB SD card in FAT format • LAN interface RJ45 , or PC control • Conference unit connector DIN7P • Maximum power • consumption 200W
